610 Rolling Service Door
Model 610

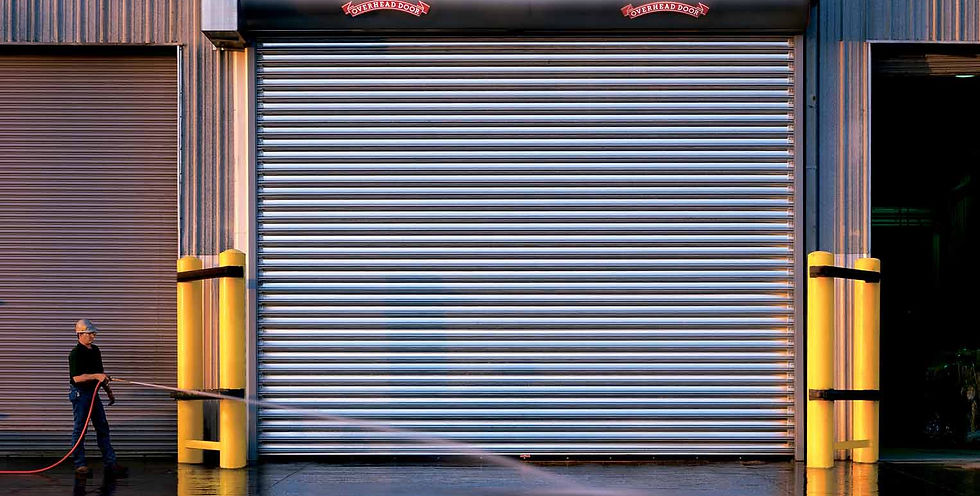

Rolling steel door model 610 is a perennial best-seller for good reason. The standard features exceed the norm for quality and a myriad of options allow for true customization. The Model 610 is built with a standard galvanized steel curtain, or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options available in curved and flat. Finishes range from four standard colors to approximately 200 powder coat colors or matched to your specification. A host of other options — including motor operation, pass doors, exhaust ports, between-jambs mounting, cylinder locks and special usage packages — allow the 610 to be adapted to any environment.
Color Options
Standard Exterior Color
White
Brown
Gray
Tan
Slat Profile
Standard - Curved
C-187 is standard up to 15' 4" wide in 22 gauge. Other gauge options available.
C-275 is is option up to 15' 4" and standard for doors over 15' 4" Wide. Gage dependent on opening width. Fenestrations available in uniformly spaced openings. Perforation or fenestration options available for air and light infiltration available on 18 gauge primed steel only.
Option - Flat
F-265 available up to 30' 4" wide in 18 gauge. Other gauges available. Fenestrations available in uniformly spaced openings. Perforation or fenestration options available for air and light infiltration available on 18 gauge primed steel only.
F-265E - 14 Gauge extruded aluminum solid slat available up to 20' 4" width. Perforation or fenestration not available on model 610 on F265E.
C-600 - For special applications requiring herculean size and strength, consider the 610 Series door with C-600 Slats. This non-insulated, oversized door fits openings up to 70' wide & 30' 4" tall. The curtain is grafted with 6" x 1-3/8" curved, 18, 16 or 14-gauge steel slats for unparalled strength and durability. No perforation or fenestration on model 610 on C-600.
Fenestration

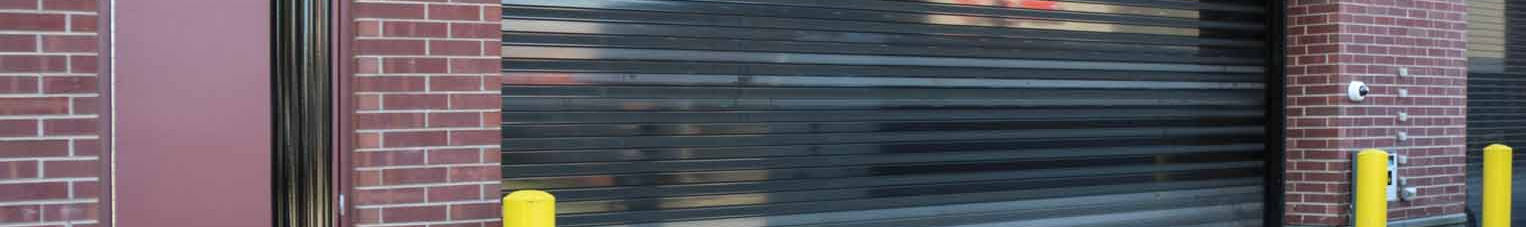

Curved Slat with 3" x 5/8" Fenestration
